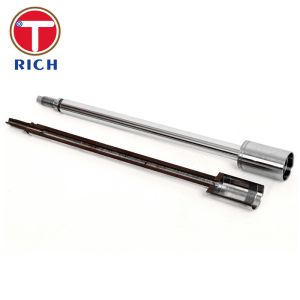

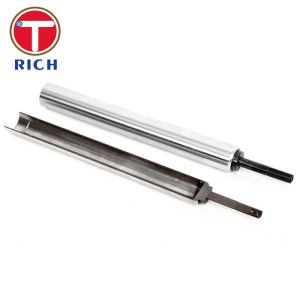

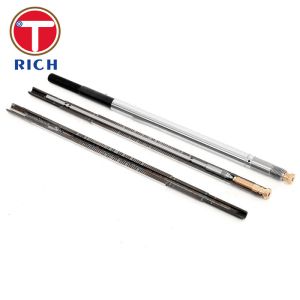

Precision CNC Machining Precision CNC Machining Parts Shock
Absorber Piston Rods
The basic parts of CNC milling machines usually refer to structural
parts such as bed, column, beam, worktable, base, etc., which are
large in size (commonly known as large parts), and constitute the
basic frame of the machine tool. Other parts are attached to the
base, and some need to move along the base. Since the base piece
plays a supporting and guiding role, the basic requirement for the
base piece is good rigidity.
Shock Absorber Piston Rods is our main product,it's a kind of
Precision CNC Machining Parts,it's Precision CNC Machining
1. Product details
Size: | O.D6mm--360mm |
Material: | CK45 S45C ST52 SAE1045 SAE10V45 42CrMo4 20MnV6 |
OD Tolerance: | ISO f7 |
Chrome Thickness: | 20-30µm(min) |
Hardness of the chrome layer: | 800HV(min) |
Roughness: | Ra0.2µm(max) |
Yield Strength: | ≥350 Mpa |
Tensile Strength: | ≥580 Mpa |
Straightness: | 0.2/1000mm |
Elongation: | ≥ 15% |
Length: | 3-9m or Customized according to customer |
| 1.Hard chrome plated |
2.Induction hardened |
3.Quenched & Tempered |
4.Induction hardened with Q&T |
2.CNC Information:
CNC milling machine is also called CNC (Computer Numerical Control)
,meaning a milling machine controlled by digital signals from an
electronic meter, which is an automatic processing equipment
developed on the basis of general milling machines.The advantages
are as below:
(1) Strong adaptability and flexibility,
(2) High processing accuracy, stable and reliable processing
quality
(3) The high degree of production automation can reduce the labor
intensity of the operator. Conducive to the automation of
production management;
(4) High production efficiency.
Multi-spindle technology
Whether it is a "one-time" drilling of a complex hole pattern,
hundreds of holes arranged in a row, or even simultaneous
multi-spindle machining of multiple workpieces, the use of
multi-spindle machining for various configurations of drilling,
threading and milling operations Is the key. After years of
practice, we have reliably implemented this technology in various
machining concepts. One of the latest innovations in this field is
the spindle fine-tuning technology for multi-spindle heads, which
allows precise manual 2-axis of the spindle Position and angle
adjustment. Such as linear, transmission or rotary table machining cnc machining plastic parts centers.
4.Picture from our production:
5.Production facility:
TORICH offers precision CNC precision machining parts service, cnc machining parts,cnc milling parts based on the metal material like carbon, alloy, copper, stainless,
etc. We foucus on the metal & plastic rapid prototyping and CNC
machining services with low volume. TORICH has had ISO 9001
certification.
What we have: 3-axis, 4-axis and 5-axis CNC machines, Radial
Drilling Machine, Automatic lathe walking machine, Cnc Machine
Laser etc.
6.FAQ
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is
30-60 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples of CNC machining accessories ? is it free
or extra ?
A: Yes, we could offer the sample for free charge but need pay the
cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
Q:How to get the sample of CNC ?
A:1. You are requested to pay for sample charges and courier
charges from China to your country; and the free sample is
according the product like size, steel grade and quantity, please
consult our sales for details
2. Sample charges will be refunded when order is placed.
